Product Type: U.S. Government
MANUFACTURER: NAL Research
MODEL #: N/A

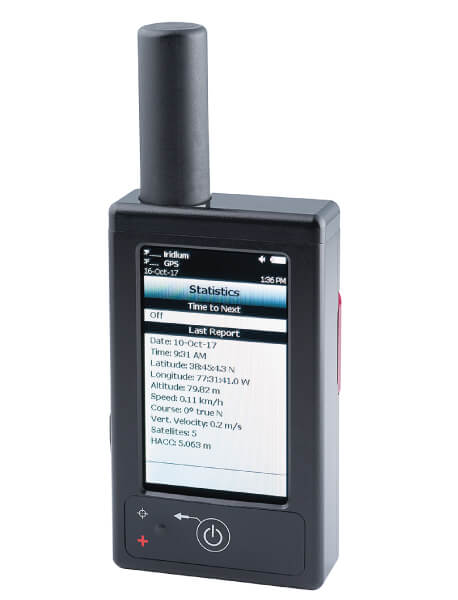

The SHOUT tw is an IP67-rated handheld, global, two-way satellite messaging and personal tracking device. It utilizes Iridium’s Short Burst Data® (SBD®) service to provide location information determined by a GPS receiver, two-way inbound and outbound status, text messaging, and emergency/alert notifications.
The SHOUT tw is equipped with a resistive high-resolution color touchscreen supporting the transmission of free-text, canned messages, and a combination of free-text and canned messages. A 911 button is used for immediate emergency/alert notifications. Data is packaged in either standard or 256-bit AES encrypted format. Data can also be sent in encrypted PECOS formats to include Brevity codes.
Key Features:
- Programmed for either the DoD or Commercial Iridium Gateway
- IP67 Rated
- >1,500 Tracking Reports with Fully Charged Battery
- Normal and Waypoint Tracking
- Optional AES 256-bit Encryption, both Transmit/Receive
SERVICES: Iridium Short Burst Data® (SBD®)
APPLICATIONS
- Blue Force Tracking
- Business Operations
- Command & Control
- Environmental Monitoring
- Global Line of Sight
- Maritime Safety & Compliance
- Personal Tracking
- Portable Solutions
- Security
- SOS
- Tactical Communications
- Tracking
MARKETS
- Military & Government
- Border Protection
- Intelligence
- Surveillance & Reconnaissance (ISR)
- Law Enforcement
- Security
- Disaster Response
- Humanitarian Aid
- Search & Rescue
TECHNICAL SPECIFICATIONS
- Size / Dimensions: 4.2” L x 2.4” W x 0.9” D (107 mm x 61 mm x 23 mm)
- Weight: 7.5 ounces (213 grams)
- Battery: 1.95 A-Hr rechargeable Lithium-Ion
- Input Voltage Range: 2.7VDC to 5.5VDC
- Operating Temperature: -20°C to 60°C (–4°F to +140°F)
- Data Speed: 2.4 Kbps
