Product Type: U.S. Government
MANUFACTURER: NAL Research
MODEL #: N/A

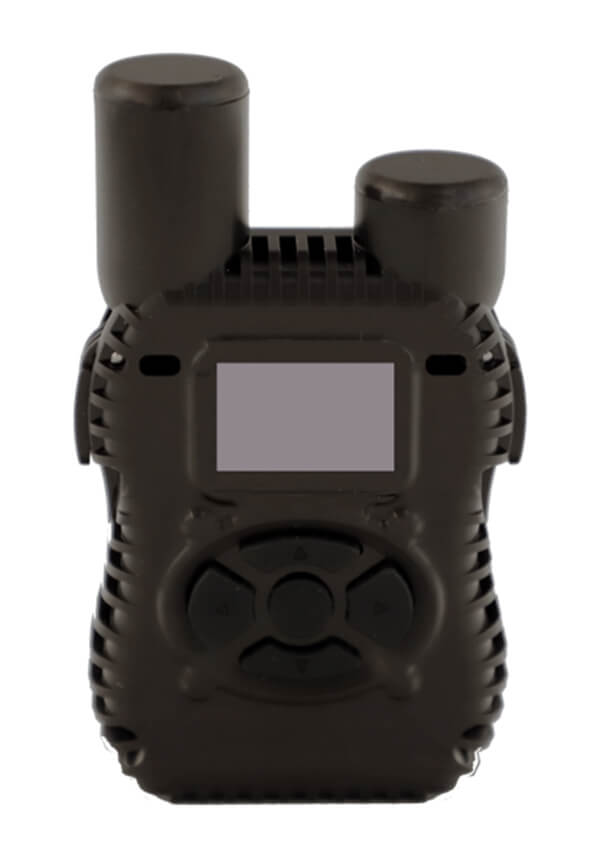

The SHOUT nano 100 is a handheld or body-worn narrowband SATCOM device with embedded Iridium® and GPS antennas. The SHOUT nano 100 can be connected to a smartphone via Bluetooth for two-way messaging, including free text, canned messages, and a combination. It can send a position report every hour for up to 2,000+ reports. The device can periodically wake from sleep to send position reports to a command center. A dual-button 911 feature is used to send immediate emergency/alert notifications to that command center or directly to a designated point of contact. Data packaged in either standard or 256-bit AES encrypted format, or upon request, data can also be sent in encrypted PECOS formats to include Brevity codes.
Key Features:
- Low-Cost Handheld or Body-Worn Tracking and Messaging
- Automatic Location Reports (+2,000 Reports)
- Programmed for either DoD or Commercial Iridium® Gateways
- Real-Time, Pole-to-Pole Coverage
- Optional AES-256 Encryption
SERVICES: Iridium Short Burst Data® (SBD®)
APPLICATIONS
- Blue Force Tracking
- Business Operations
- Command & Control
- Environmental Monitoring
- Global Line of Sight
- Maritime Safety & Compliance
- Personal Tracking
- Portable Solutions
- Security
- SOS
- Tactical Communications
- Tracking
MARKETS
- Military & Government
- Border Protection
- Surveillance & Reconnaissance (ISR)
- Law Enforcement
- Disaster Response
- Humanitarian Aid
- Search & Rescue
TECHNICAL SPECIFICATIONS
- Size / Dimensions: 76 x 46 x 18 mm (3.3″ x 1.8″ x 0.7″)
- Weight: 85 g (3.0 oz)
- Battery: Internal 3.7V Li-Ion 2000 mAh
- USB Input: Type C USB 2.0 5V DC, up to 1A
- Operating Temperature: -20°C to 60°C (–4°F to +140°F)
- Data Speed: 2.4 Kbps
