Product Type: U.S Government
MANUFACTURER: MetOcean
MODEL #: N/A
The STREAM product line consists of a series of versatile low-cost transceiver packages that enable end-users to send and receive data via the Iridium Satellite Constellation anywhere on the planet. The STREAM transceivers are available in several variants (STREAM 200, 210, 211), this provides end-users with flexible integration options depending on their overall design requirements. All STREAM variants come equipped with an Iridium 9603N transceiver, serial communications module, and a power entry support for various OEM engineering systems and hardware/software development applications where cellular connectivity is intermittent or non-existent.
Key Features:
- True Global Coverage
- Plug and Play Satellite Communication
- Low Latency with Iridium Satellite Telemetry
SERVICES: Short Burst Data®
APPLICATIONS
- Asset Tracking & Fleet Management
- Remote Communications
- Industrial Control and Monitoring
- Preventative Maintenance
MARKETS
- Heavy Equipment
- Transportation
- Battlefield Logistics
- Agribusiness
- Maritime
TECHNICAL SPECIFICATIONS

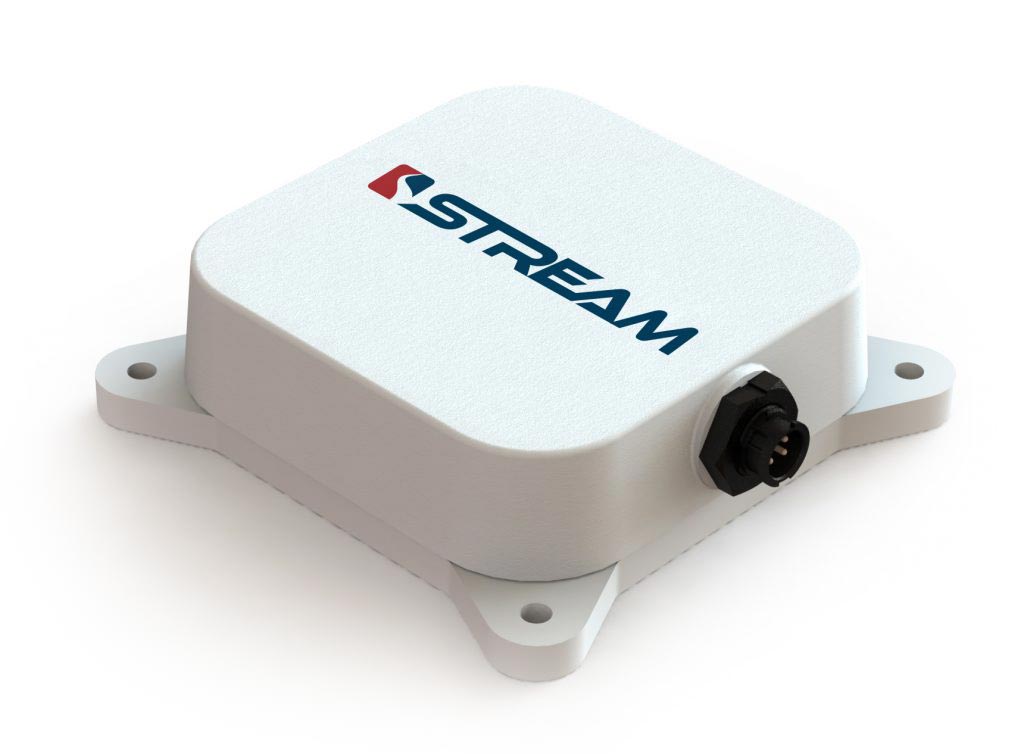

STREAM 200
- Dimensions 95.4mm x 95.4mm x 27.3mm (3.76” x 3.76” x 1.09”)
- Mass 125g
- Connector 5 Pin Panel Mount, Receptacle, Male Pins. Bayonet Lock
Environmental Properties
- Storage Temperature -40°C to 85°C
- Operating Temperature -40°C to 70°C
- Ingress Protection IP67
- Testing ISED, FCC, Iridium
Power
- Input Voltage 4.5V – 40V
- Standby Current 17mA @12V
- Transmit Current 175mA @12V
Communication
- Serial RS-232
- Iridium Modem 9603N Short Burst Transceiver
- Iridium Antenna Patch antenna
STREAM 210
- Dimensions 40mm x 64mm x 17.9mm (1.58” x 2.52” x 0.70”)
- Mass 52g
- Connector 0.1” spacing male pins
