Product Type: Developer Products
MANUFACTURER: Iridium Communications Inc.
MODEL #: 7010
The Iridium PNT ASIC is an all-in-one chip optimized for Iridium’s resilient positioning, navigation, and timing (PNT) service, which is available today worldwide. Commercial availability is expected in mid-2026.
Key Features:

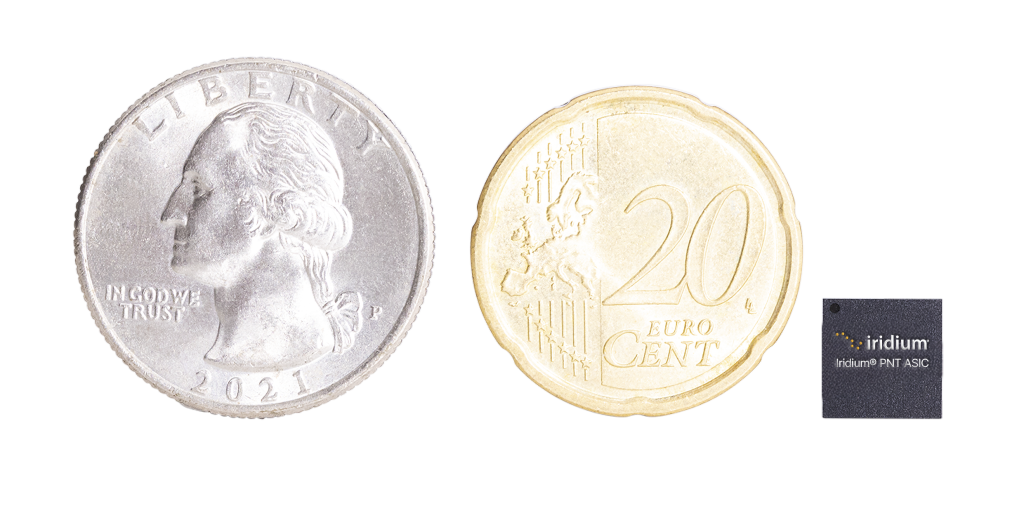

- 8 x 8mm ASIC designed to accommodate a range of form factors
- Familiar interfaces that resemble typical GPS/GNSS receivers for quick adoption
- Built-in RF and power regulators that cut complexity
- Secure, on-chip firmware storage that streamlines deployment
- Flexible configurations to create a standalone Iridium PNT receiver or hybrid Iridium + GNSS solution
SERVICES: Iridium PNT
APPLICATIONS
- Critical Infrastructure
- GPS/GNSS Complement
- Indoor Timing Source
- System Security
MARKETS
- Energy
- Transportation
- Telecommunications
- Maritime
- Finance
- Government
TECHNICAL SPECIFICATIONS
- Dimensions: 68 QFN 8 mm x 8 mm x 0.85 mm (LxWxH)
- Power Input: 3.3 V DC
- Power Draw: Approx. 1 W
- Operating Temp: -20°C to 70°C
- Storage Temp: -55°C to 150°C
