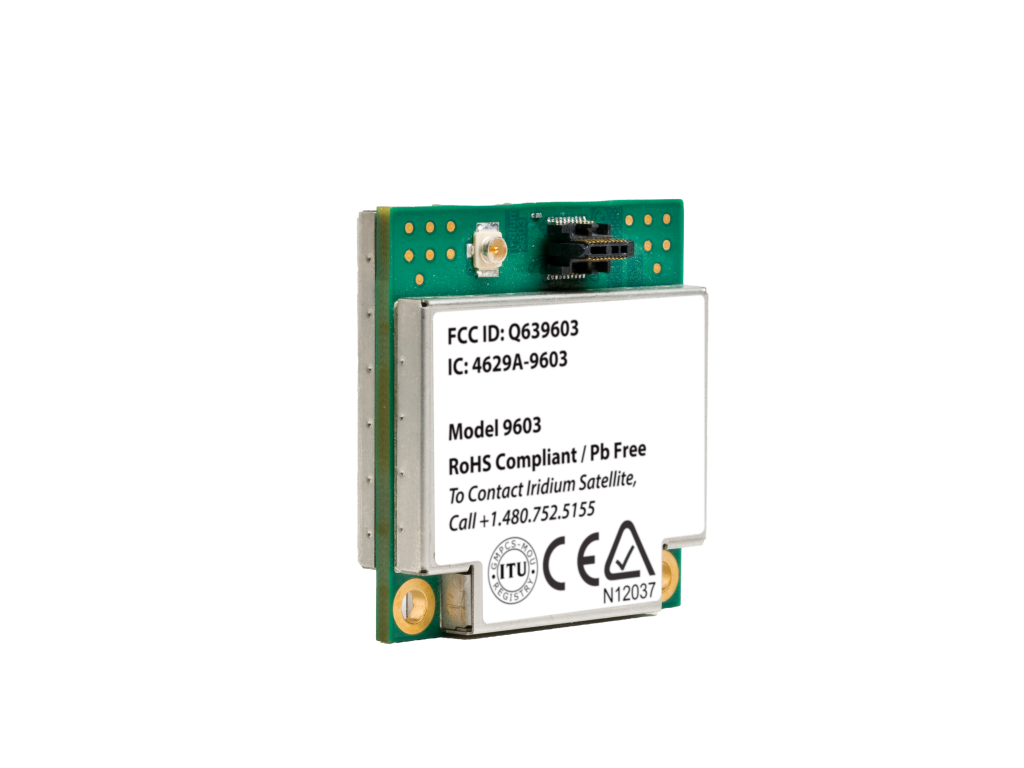

Iridium 9603 ESBD

Product Type: Developer Products
MANUFACTURER: Iridium Communications Inc

The Iridium 9603 ESBD module provides optimal transmission security (TRANSEC) for warfighters and support staff. It offers greater on-air performance compared to its Iridium 9603 Short Burst Data® (SBD®) counterpart.

Key Features:

  • AES-256 encrypted payload and metadata, including transceiver identifiers and geolocation
  • Increased transfer rates for messages larger than 70 bytes
  • 12x greater maximum mobile-originated (MO) and 15x greater maximum mobile-terminated (MT) message sizes than SBD
  • Message recovery allows data transfer continuity in momentary radio frequency (RF) signal loss
  • Longer battery life (no re-transmission of acknowledged data)

SERVICES: Iridium Enhanced Short Burst Data (ESBD)

APPLICATIONS

  • Command & Control (C2)
  • Remote Monitoring
  • Personnel & Asset Tracking
  • Image Data Transfer
  • Unattended Ground Sensors

MARKETS

  • U.S. Government

TECHNICAL SPECIFICATIONS

  • Size / Dimensions: 31.5 mm x 29.6 mm x 8.1 mm
  • Weight: 11.4 g
  • Power:
    • Supply Input Voltage
      — Range: 5.0V + / – .5V DC
      — Ripple: <40mV pp
    • Idle Current
      — Average: 34 mA
      — Peak: 156 mA
    • Transmit Current
      — Average: 145 mA
      — Peak: 1.3 A
    • Receive Current
      — Average: 39 mA
      — Peak: 156 mA
    • SBD® Message Transfer
      — Average Current: 158 Ma
      — Average Power: <= 0.8 W
  • Operating Temperature: -40°C to +85°C
  • Data Speed: 2.4 Kbps
